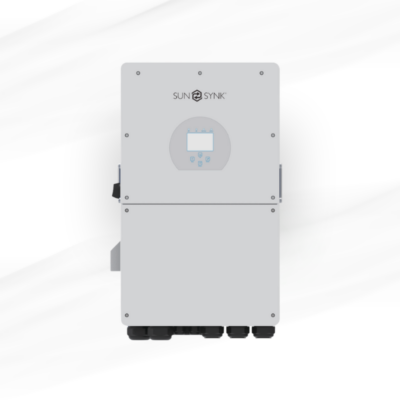

16KW SUNSYNK PLUS HYBRID INVERTER

The Sunsynk 16kW Plus Hybrid Inverter is a high-performance single-phase inverter designed for residential and light commercial solar installations with high energy demands. Model SYNK-16K-SG01LP1PLUS combines powerful solar input capacity with flexible battery integration, making it an excellent choice for customers looking to maximise energy production and battery storage.

The Sunsynk 16kW Plus features dual battery inputs and supports a maximum charge and discharge current of 290A, allowing it to efficiently manage large lithium battery banks. With a maximum PV input power of 25,600W, installers can oversize the solar array to increase energy generation throughout the day.

Equipped with three independent MPPTs in a 2 + 2 + 2 string configuration, the inverter provides greater design flexibility and optimises energy harvest from multiple roof orientations. It also supports a maximum DC input voltage of 500V, an MPPT operating range of 150V–425V, and 36A operating current per MPPT, making it compatible with today’s high-power solar panels.

Whether you’re installing a new solar system or upgrading an existing one, the Sunsynk 16kW Plus Hybrid Inverter delivers reliable performance, intelligent energy management, and the flexibility required for modern hybrid solar installations.

Key Features

• 16kW single-phase hybrid inverter
• Model: SYNK-16K-SG01LP1PLUS
• Dual battery inputs
• Maximum charge/discharge current: 290A
• Maximum PV input power: 25,600W
• 3 independent MPPTs (2 + 2 + 2 strings)
• MPPT voltage range: 150V–425V
• Maximum DC input voltage: 500V
• Compatible with modern high-power solar panels
